如何在长行程堆取料机安装过程中防止大截面Type 455电缆发生”鸟笼”现象？
How Do You Prevent “Birdcaging” in Large Cross-Section Type 455 Cables During Installation on Long-Travel Stackers?
如何在长行程堆取料机安装过程中防止大截面Type 455电缆发生”鸟笼”现象？
Technical Engineering Guide by Anhui Feichun Special Cable Co., Ltd. (安徽飞纯特种电缆有限公司)
Last Updated: January 2026 | Installation Best Practices Document
1. Introduction to Birdcaging 鸟笼现象简介
Birdcaging is a severe form of cable distortion that occurs when the individual strands or conductors of a cable unravel and expand outward, creating a shape that resembles a birdcage. This phenomenon represents one of the most critical failure modes for stranded cables and wire ropes used in industrial applications. When birdcaging occurs, the cable’s structural integrity becomes compromised, and it must be immediately removed from service to prevent catastrophic failure.
鸟笼现象是一种严重的电缆变形形式，当电缆的单股或导体松散并向外膨胀时发生，形成类似鸟笼的形状。这种现象是工业应用中绞合电缆和钢丝绳最关键的失效模式之一。当鸟笼现象发生时，电缆的结构完整性会受到损害，必须立即停止使用以防止灾难性故障。
In the context of large cross-section Type 455 cables used on long-travel stackers and reclaimers, birdcaging presents particularly significant challenges due to the combination of high mechanical stresses, frequent reeling and unreeling cycles, and the substantial cable mass involved. Understanding the mechanisms that cause birdcaging and implementing proper prevention strategies is essential for maintaining safe, reliable operation of material handling equipment in ports, mines, and bulk material facilities.
在长行程堆取料机上使用的大截面Type 455电缆中，由于高机械应力、频繁的卷绕和展开循环以及涉及的大量电缆质量的组合，鸟笼现象带来了特别重大的挑战。了解导致鸟笼现象的机制并实施适当的预防策略对于维护港口、矿山和散装物料设施中物料搬运设备的安全可靠运行至关重要。
1.1 Why Birdcaging is Critical 为何鸟笼现象至关重要
The consequences of birdcaging extend beyond simple cable damage. When birdcaging occurs in power cables on stacker-reclaimers, the results can include electrical faults due to conductor exposure, safety hazards from compromised insulation integrity, unplanned equipment downtime causing production losses, potential damage to cable reeling drums and guide systems, and costly emergency cable replacement procedures. For these reasons, preventing birdcaging through proper installation techniques and operational practices represents a far more cost-effective approach than reactive maintenance.
鸟笼现象的后果不仅限于简单的电缆损坏。当堆取料机上的电力电缆发生鸟笼现象时，结果可能包括：导体暴露导致的电气故障、绝缘完整性受损造成的安全隐患、计划外设备停机导致的生产损失、电缆卷绕鼓和导向系统的潜在损坏，以及昂贵的紧急电缆更换程序。因此，通过正确的安装技术和操作实践来预防鸟笼现象是比被动维护更具成本效益的方法。
Reference: Eland Cables – What is Birdcaging in Cables

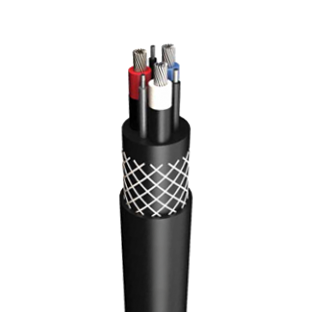

2. Type 455 Cable Overview Type 455电缆概述
Type 455 cables are specifically engineered for reeling and trailing applications where minimal diameter and mass are critical requirements. These cables comply with AS/NZS 2802:2000, the Australian and New Zealand standard for reeling and trailing cables used in surface mining, underground mining (other than coal mining), and general industrial applications including stacker-reclaimers, ship loaders, travelling cranes, and other large materials handling equipment.
Type 455电缆专门为对最小直径和质量有严格要求的卷绕和拖曳应用而设计。这些电缆符合AS/NZS 2802:2000标准，这是澳大利亚和新西兰关于露天采矿、地下采矿（煤矿除外）和一般工业应用（包括堆取料机、装船机、行车起重机和其他大型物料搬运设备）中使用的卷绕和拖曳电缆的标准。
2.1 Design Characteristics 设计特性
The Type 455 cable features a reduced insulation and sheath thickness design compared to other mining cable types, making it particularly suitable for stacker-reclaimer applications where weight and diameter constraints affect equipment performance. The cable construction includes no cradle separator, with 2 earth cores and 1 pilot core of equal size positioned in the outer interstices. This design philosophy reduces overall cable mass while maintaining the electrical and mechanical performance required for demanding reeling operations.
与其他采矿电缆类型相比，Type 455电缆采用减薄的绝缘层和护套厚度设计，使其特别适合对重量和直径限制影响设备性能的堆取料机应用。电缆结构不包括摇篮分离器，2根接地芯和1根相同尺寸的先导芯位于外部间隙中。这种设计理念在保持苛刻卷绕操作所需的电气和机械性能的同时减少了整体电缆质量。
| Component 组件 | Material 材料 | Function 功能 |
|---|---|---|
| Conductor 导体 | Flexible stranded tinned annealed copper 柔性绞合镀锡退火铜 |
Power transmission, corrosion resistance 电力传输，耐腐蚀 |
| Conductor Screen 导体屏蔽 | Semiconductive compound (3.3kV and above) 半导体化合物（3.3kV及以上） |
Electric field grading 电场分级 |
| Insulation 绝缘层 | EPR (Ethylene Propylene Rubber) 乙丙橡胶 |
Primary electrical insulation 主要电气绝缘 |
| Insulation Screen 绝缘屏蔽 | Semiconductive elastomer 半导体弹性体 |
Electric stress relief 电应力释放 |
| Filler 填充物 | Elastomer centre filler 弹性体中心填充物 |
Structural support 结构支撑 |
| Earth Conductors 接地导体 | 2× CSP covered tinned copper 2× CSP覆盖镀锡铜 |
Protective earthing 保护接地 |
| Pilot Core 先导芯 | 1× EPR covered tinned copper 1× EPR覆盖镀锡铜 |
Earth continuity monitoring 接地连续性监测 |
| Textile Reinforcement 纺织增强层 | Open-weave braid 开口编织 |
Torsion protection, structural integrity 扭转保护，结构完整性 |
| Outer Sheath 外护套 | Extra-heavy duty PCP/CPE/CSP 超重型PCP/CPE/CSP |
Mechanical protection, abrasion resistance 机械保护，耐磨性 |
Reference: Tratos Group – AS/NZS MTO-455 Class 1 Cable Specifications
2.2 Voltage Ratings and Cross-Sections 电压等级和截面
| Voltage Rating 电压等级 | Test Voltage 测试电压 | Typical Cross-Sections 典型截面 | Application 应用 |
|---|---|---|---|
| 3.3/3.3 kV | 12 kV | 35 – 185 mm² | Medium stackers, port equipment 中型堆料机，港口设备 |
| 6.6/6.6 kV | 22 kV | 50 – 240 mm² | Large stackers, mining equipment 大型堆料机，采矿设备 |
| 11/11 kV | 30 kV | 70 – 300 mm² | Heavy-duty stackers, bucket wheels 重型堆料机，斗轮机 |
| 22/22 kV | 45 kV | 95 – 300 mm² | Large mining equipment 大型采矿设备 |
| 33/33 kV | 58 kV | 120 – 300 mm² | High-power applications 大功率应用 |
Reference: Üntel Cables – AS/NZS 2802 Type 455 Specifications
3. Root Causes of Birdcaging 鸟笼现象的根本原因
Understanding the mechanisms that cause birdcaging is essential for implementing effective prevention strategies. In large cross-section Type 455 cables, birdcaging typically results from one or more of the following conditions occurring during installation or operation.
了解导致鸟笼现象的机制对于实施有效的预防策略至关重要。在大截面Type 455电缆中，鸟笼现象通常是由于安装或运行期间发生以下一种或多种情况造成的。
3.1 Primary Causes 主要原因
| Cause 原因 | Mechanism 机制 | Risk Level 风险等级 | Prevention Focus 预防重点 |
|---|---|---|---|
| Sudden Tension Release 突然释放张力 | Rapid unloading causes rebound and strand separation 快速卸载导致反弹和股线分离 |
Critical 严重 | Tension control systems 张力控制系统 |
| Improper Unreeling Method 不正确的展开方法 | Pulling cable axially introduces torsion 轴向拉动电缆引入扭转 |
High 高 | Tangential unreeling technique 切向展开技术 |
| Incorrect Fleet Angle 不正确的偏转角 | Angles outside 0.5°-2.5° range cause spooling issues 超出0.5°-2.5°范围的角度导致卷绕问题 |
High 高 | Proper sheave positioning 正确的滑轮定位 |
| Drum Groove Mismatch 鼓槽不匹配 | Incorrect groove dimensions cause crushing 不正确的槽尺寸导致挤压 |
High 高 | Groove specification matching 槽规格匹配 |
| Insufficient Preload 预载不足 | Loose inner layers crushed by outer layers 松散的内层被外层挤压 |
Medium 中 | Minimum 2% breaking load 最小2%断裂载荷 |
| Reverse Bending 反向弯曲 | Bending against original coil direction 与原始卷绕方向相反弯曲 |
Medium 中 | Top-to-top winding 顶对顶卷绕 |
| Excessive Speed 过高速度 | High acceleration creates shock loads 高加速度产生冲击载荷 |
Medium 中 | Speed limitation compliance 速度限制合规 |
| Manufacturing Defects 制造缺陷 | Incorrect lay length or tension during production 生产过程中不正确的节距或张力 |
Low 低 | Quality certification verification 质量认证验证 |
Reference: Safeopedia – Bird Caging Definition and Causes
3.2 Torsional Stress Accumulation 扭转应力累积
During reeling operations, the cable experiences complex loading conditions including tensile forces from the cable weight and drum tension, bending stresses as the cable wraps around the drum, and torsional stresses from the helical winding pattern. In large cross-section cables, these stresses accumulate more significantly due to the greater mass and stiffness of the cable. When torsional stress exceeds the cable’s structural capacity to resist deformation, the outer strands begin to separate and expand outward, initiating the birdcaging process.
在卷绕操作期间，电缆经历复杂的载荷条件，包括来自电缆重量和鼓张力的拉伸力、电缆缠绕在鼓上时的弯曲应力，以及来自螺旋缠绕模式的扭转应力。在大截面电缆中，由于电缆的质量和刚度更大，这些应力积累更为显著。当扭转应力超过电缆抵抗变形的结构能力时，外层股线开始分离并向外膨胀，启动鸟笼现象过程。
Reference: Bilco Group – Wire Rope Birdcaging and Prevention
4. Prevention Strategies 预防策略
Preventing birdcaging in Type 455 cables requires a systematic approach that addresses all phases of cable handling, from initial delivery through installation and ongoing operation. The following strategies form the foundation of an effective birdcaging prevention programme.
预防Type 455电缆中的鸟笼现象需要一种系统性方法，涵盖电缆处理的所有阶段，从初始交付到安装和持续运行。以下策略构成了有效的鸟笼预防计划的基础。
4.1 Pre-Installation Planning 安装前规划
Before beginning any cable installation on a long-travel stacker, thorough planning must be completed. This includes verifying that the cable drum diameter meets or exceeds the minimum bending radius requirement for the specific cable cross-section, confirming that the cable reeling drum groove dimensions are compatible with the cable diameter (nominal diameter +7.5% tolerance), calculating the required fleet angle based on the distance between the first sheave and the drum, and ensuring adequate space exists for tangential cable payout from the supply drum.
在开始任何长行程堆料机上的电缆安装之前，必须完成彻底的规划。这包括：验证电缆鼓直径达到或超过特定电缆截面的最小弯曲半径要求、确认电缆卷绕鼓槽尺寸与电缆直径兼容（标称直径+7.5%公差）、根据第一个滑轮和鼓之间的距离计算所需的偏转角，以及确保有足够的空间从供应鼓切向放出电缆。
4.2 Key Prevention Parameters 关键预防参数
| Parameter 参数 | Recommended Value 推荐值 | Consequence if Exceeded 超出后果 |
|---|---|---|
| Fleet Angle (Smooth Drum) 偏转角（光滑鼓） | 0.5° – 1.5° | Rope piling or flange wear 绳索堆积或法兰磨损 |
| Fleet Angle (Grooved Drum) 偏转角（槽鼓） | 0.5° – 2.0° | Improper layer formation 不正确的层形成 |
| Minimum Preload 最小预载 | 2% of breaking load or 10% of working load 断裂载荷的2%或工作载荷的10% |
Loose winding, crushing risk 松散缠绕，挤压风险 |
| Minimum Bend Radius (Installation) 最小弯曲半径（安装） | ≥ 12 × cable diameter ≥ 12 × 电缆直径 |
Conductor damage, insulation stress 导体损坏，绝缘应力 |
| Minimum Bend Radius (Operation) 最小弯曲半径（运行） | ≥ 8 × cable diameter ≥ 8 × 电缆直径 |
Fatigue failure 疲劳失效 |
| Drum Groove Tolerance 鼓槽公差 | Nominal diameter + 5-7.5% 标称直径 + 5-7.5% |
Crushing or loose spooling 挤压或松散卷绕 |
| Sheave-to-Drum Distance 滑轮到鼓距离 | ≥ 20 × drum width ≥ 20 × 鼓宽度 |
Fleet angle violations 偏转角违规 |
Reference: Lebus International – Spooling System FAQ
Reference: Wikipedia – Wire Rope Spooling Technology
5. Proper Installation Procedures 正确的安装程序
The installation phase presents the greatest risk for introducing conditions that lead to birdcaging. Following proper procedures during this critical phase establishes the foundation for reliable long-term operation.
安装阶段是引入导致鸟笼现象条件的最大风险时期。在这一关键阶段遵循正确的程序为可靠的长期运行奠定基础。
5.1 Tangential Unreeling Method 切向展开方法
The supply drum must always be positioned so that the cable can be unreeled tangentially rather than axially. Tangential unreeling means the cable comes off the drum perpendicular to the drum axis, allowing it to unwind naturally without introducing twist. When cable is pulled axially from a drum lying flat, each coil that comes off introduces a full rotation of twist into the cable, which accumulates and eventually causes birdcaging or other strand distortion.
供应鼓必须始终定位，使电缆能够切向展开而不是轴向展开。切向展开意味着电缆垂直于鼓轴从鼓上脱离，使其能够自然展开而不引入扭转。当电缆从平放的鼓上轴向拉出时，每一圈脱离都会在电缆中引入完整一圈的扭转，这种扭转会累积并最终导致鸟笼现象或其他股线变形。
5.2 Step-by-Step Installation Process 分步安装流程
| Step 步骤 | Action 操作 | Critical Check 关键检查 |
|---|---|---|
| 1 | Position supply drum with horizontal axis, supported on jacks or turntable 将供应鼓水平轴放置，用千斤顶或转台支撑 |
Drum rotates freely without binding 鼓自由旋转无卡阻 |
| 2 | Verify supply drum is positioned at adequate distance from reeling drum 验证供应鼓与卷绕鼓保持足够距离 |
Distance ≥ 20× drum width 距离 ≥ 20×鼓宽度 |
| 3 | Calculate and verify fleet angle within acceptable range 计算并验证偏转角在可接受范围内 |
Fleet angle 0.5° – 2.0° 偏转角 0.5° – 2.0° |
| 4 | Route cable through guide sheaves and level wind mechanism 将电缆穿过导向滑轮和排线机构 |
No sharp bends, correct sheave diameter 无急弯，正确的滑轮直径 |
| 5 | Secure cable end to drum anchor point using manufacturer’s recommended method 使用制造商推荐的方法将电缆端固定到鼓锚点 |
Secure attachment, no conductor damage 牢固连接，无导体损坏 |
| 6 | Begin winding at slow speed under controlled tension 在受控张力下以慢速开始卷绕 |
Tension ≥ 2% breaking load 张力 ≥ 断裂载荷的2% |
| 7 | Monitor first layer formation – each wrap should sit tightly against previous 监测第一层形成——每圈应紧贴前一圈 |
No gaps, no overlapping 无间隙，无重叠 |
| 8 | Continue winding subsequent layers, maintaining constant tension 继续卷绕后续层，保持恒定张力 |
Uniform layer transitions at crossover 在交叉点均匀层过渡 |
| 9 | Complete installation and verify cable movement through full travel range 完成安装并验证电缆在整个行程范围内的移动 |
No binding, no excessive slack 无卡阻，无过度松弛 |
Reference: Assembly Specialty Products – Wire Rope Handling and Installation Guide
5.3 Winding Direction 卷绕方向
The cable must be wound onto the reeling drum in the same direction it was originally wound during manufacturing. This is typically achieved by winding “top-to-top” where the cable comes off the top of the supply drum and winds onto the top of the reeling drum, or “bottom-to-bottom” where both operations occur at the bottom. Mixing these directions causes reverse bending, which stresses the cable structure and can contribute to birdcaging over time.
电缆必须按照制造过程中原始卷绕的相同方向卷绕到卷绕鼓上。这通常通过”顶对顶”卷绕实现，即电缆从供应鼓顶部脱离并卷绕到卷绕鼓顶部，或”底对底”卷绕，即两个操作都在底部进行。混合这些方向会导致反向弯曲，这会对电缆结构产生应力，并可能随着时间推移导致鸟笼现象。
6. Cable Reeling System Setup 电缆卷绕系统设置
The cable reeling drum system on a long-travel stacker must be properly configured to manage the cable throughout all phases of equipment operation. A well-designed system automatically winds and unwinds the power cable while maintaining appropriate tension and preventing damage.
长行程堆料机上的电缆卷绕鼓系统必须正确配置，以在设备运行的所有阶段管理电缆。设计良好的系统可以自动卷绕和展开电力电缆，同时保持适当的张力并防止损坏。
6.1 Reeling System Components 卷绕系统组件
| Component 组件 | Function 功能 | Birdcaging Prevention Role 鸟笼预防作用 |
|---|---|---|
| Torque Control Unit (Contorq) 扭矩控制单元 | Provides controlled, constant tension during winding 在卷绕过程中提供受控的恒定张力 |
Prevents slack and sudden tension changes 防止松弛和突然的张力变化 |
| Level Wind Mechanism 排线机构 | Guides cable across drum face during spooling 在卷绕过程中引导电缆横跨鼓面 |
Ensures uniform layer formation 确保均匀的层形成 |
| Roller Guide Way 滚轮导向 | Directs cable path from feed point to drum 引导电缆从馈电点到鼓的路径 |
Maintains correct fleet angle 保持正确的偏转角 |
| Geared Rotary Limit Switch 齿轮旋转限位开关 | Monitors drum rotation and cable position 监测鼓旋转和电缆位置 |
Prevents over-travel and slack conditions 防止超行程和松弛状况 |
| Under-Tension Switch 欠张力开关 | Detects loss of cable tension 检测电缆张力损失 |
Stops operation before birdcaging can occur 在鸟笼现象发生前停止运行 |
| Directional Sensors 方向传感器 | Detect machine travel direction 检测机器行进方向 |
Coordinates reeling with machine movement 协调卷绕与机器移动 |
| Slip Ring Assembly 滑环组件 | Transfers power from rotating drum to fixed cable 将电力从旋转鼓传输到固定电缆 |
Enables continuous rotation without cable twist 实现无电缆扭转的连续旋转 |
Reference: Coal Handling Plants – Cable Reeling Drum Technical Guide
6.2 Grooved Drum Requirements 槽鼓要求
For multi-layer spooling applications typical of long-travel stackers, the use of grooved drums (such as Lebus-pattern grooving) significantly reduces birdcaging risk by providing positive guidance for each cable wrap. The parallel groove system, with its single slanted crossover section per revolution, ensures that each wrap sits precisely in position, and subsequent layers rest evenly across the lower layers. This design eliminates the gaps and irregularities that can allow strands to shift and potentially initiate birdcaging.
对于长行程堆料机典型的多层卷绕应用，使用槽鼓（如Lebus型槽）通过为每圈电缆提供正向引导，显著降低鸟笼风险。平行槽系统每转一圈有一个倾斜的交叉段，确保每圈精确就位，后续层均匀地放置在下层上。这种设计消除了可能允许股线移动并可能引发鸟笼现象的间隙和不规则性。
7. Tension Management 张力管理
Proper tension management is perhaps the single most critical factor in preventing birdcaging. The cable must remain under controlled tension throughout all phases of operation, from initial installation through daily reeling and unreeling cycles.
适当的张力管理可能是预防鸟笼现象最关键的单一因素。电缆必须在所有运行阶段保持受控张力，从初始安装到日常的卷绕和展开循环。
7.1 Tension Control Principles 张力控制原则
The torque motor and Contorq unit in a cable reeling system must be configured to provide constant tension regardless of the amount of cable on the drum. As cable unwinds and the effective drum diameter decreases, the torque output must adjust to maintain consistent tension. Similarly, during winding operations, the system must provide sufficient back-tension to ensure tight, uniform layers without crushing the cable.
电缆卷绕系统中的扭矩电机和Contorq单元必须配置为无论鼓上有多少电缆都能提供恒定张力。当电缆展开且有效鼓直径减小时，扭矩输出必须调整以保持一致的张力。同样，在卷绕操作期间，系统必须提供足够的反向张力，以确保紧密、均匀的层而不挤压电缆。
7.2 Tension Specifications 张力规格
| Cable Cross-Section 电缆截面 | Typical Breaking Load 典型断裂载荷 | Minimum Installation Tension (2%) 最小安装张力（2%） | Operating Tension Range 运行张力范围 |
|---|---|---|---|
| 3×70 mm² | ~85 kN | 1.7 kN (170 kg) | 1.5 – 4.0 kN |
| 3×95 mm² | ~110 kN | 2.2 kN (220 kg) | 2.0 – 5.5 kN |
| 3×120 mm² | ~140 kN | 2.8 kN (280 kg) | 2.5 – 7.0 kN |
| 3×150 mm² | ~175 kN | 3.5 kN (350 kg) | 3.0 – 8.5 kN |
| 3×185 mm² | ~215 kN | 4.3 kN (430 kg) | 4.0 – 10.5 kN |
| 3×240 mm² | ~280 kN | 5.6 kN (560 kg) | 5.0 – 14.0 kN |
Note: Values are indicative and should be confirmed against specific cable manufacturer datasheets.
注：数值为指示性数据，应根据特定电缆制造商的数据表确认。
7.3 Avoiding Slack Conditions 避免松弛状况
Slack cable conditions represent the most dangerous situation for birdcaging development. When a stacker changes direction or decelerates rapidly, the cable reeling system must immediately respond to take up any slack. The under-tension switch serves as a critical safety device, stopping equipment operation if tension falls below the safe threshold. Regular calibration and testing of this switch is essential for birdcaging prevention.
松弛电缆状况代表鸟笼现象发展最危险的情况。当堆料机改变方向或快速减速时，电缆卷绕系统必须立即响应以收紧任何松弛部分。欠张力开关作为关键的安全装置，在张力降至安全阈值以下时停止设备运行。该开关的定期校准和测试对于预防鸟笼现象至关重要。
8. Inspection and Maintenance 检查与维护
Regular inspection and proactive maintenance are essential components of a comprehensive birdcaging prevention programme. Early detection of conditions that could lead to birdcaging allows corrective action before cable damage occurs.
定期检查和主动维护是全面鸟笼预防计划的重要组成部分。早期检测可能导致鸟笼现象的条件允许在电缆损坏发生前采取纠正措施。
8.1 Inspection Schedule 检查计划
| Inspection Item 检查项目 | Frequency 频率 | What to Look For 检查内容 |
|---|---|---|
| Visual cable inspection 目视电缆检查 | Daily 每日 | Sheath damage, bulging, strand separation 护套损坏、鼓包、股线分离 |
| Tension system check 张力系统检查 | Weekly 每周 | Proper operation, calibration status 正常运行、校准状态 |
| Drum groove condition 鼓槽状况 | Monthly 每月 | Wear, damage, debris accumulation 磨损、损坏、碎屑积累 |
| Level wind mechanism 排线机构 | Monthly 每月 | Alignment, smooth operation 对准、平稳运行 |
| Slip ring assembly 滑环组件 | Monthly 每月 | Surface condition, brush wear 表面状况、电刷磨损 |
| Full cable unreeling inspection 全电缆展开检查 | Quarterly 每季度 | Complete cable length for damage 完整电缆长度的损坏情况 |
| Tension system calibration 张力系统校准 | Annually 每年 | Verify against specification 根据规格验证 |
8.2 Warning Signs of Impending Birdcaging 鸟笼现象即将发生的警告信号
Operators and maintenance personnel should be trained to recognise the early warning signs that may indicate birdcaging is developing. These signs include localised swelling or bulging of the outer sheath, visible separation between outer strands, excessive cable rotation during unreeling, unusual sounds during reeling operations, and irregular spooling patterns on the drum. If any of these conditions are observed, the cable should be immediately removed from service and inspected by qualified personnel.
操作员和维护人员应接受培训，以识别可能表明鸟笼现象正在发展的早期警告信号。这些信号包括：外护套的局部膨胀或鼓包、外层股线之间的可见分离、展开过程中电缆过度旋转、卷绕操作期间的异常声音，以及鼓上不规则的卷绕模式。如果观察到任何这些情况，应立即停止使用电缆并由合格人员进行检查。
9. Technical Specifications 技术规格
The following specifications provide reference data for Type 455 cable selection and installation on long-travel stacker applications.
以下规格为长行程堆料机应用的Type 455电缆选择和安装提供参考数据。
9.1 Type 455 Performance Specifications Type 455性能规格
| Parameter 参数 | Specification 规格 | Standard Reference 标准参考 |
|---|---|---|
| Voltage Rating 电压等级 | 3.3/3.3 kV to 33/33 kV | AS/NZS 2802:2000 |
| Conductor 导体 | Class 5 Flexible Tinned Copper | AS/NZS 1125 |
| Insulation 绝缘层 | EPR (R-EP-90) | AS/NZS 3808 |
| Sheath 护套 | XHD-85-PCP or equivalent | AS/NZS 3808 |
| Operating Temperature 运行温度 | -25°C to +90°C | AS/NZS 2802:2000 |
| Maximum Reeling Speed (Horizontal) 最大卷绕速度（水平） | ≤ 240 m/min | Manufacturer specification 制造商规格 |
| Maximum Reeling Speed (Vertical) 最大卷绕速度（垂直） | ≤ 180 m/min | Manufacturer specification 制造商规格 |
| Minimum Drum Diameter 最小鼓直径 | ≥ 20 × cable OD | AS/NZS 2802:2000 |
| Flame Retardancy 阻燃性 | IEC 60332-3-24 | AS/NZS 2802:2000 |
Reference: Caledonian Cables – AS/NZS Mining Cables Technical Catalogue
9.2 Stacker-Reclaimer Application Requirements 堆取料机应用要求
| Requirement 要求 | Typical Value 典型值 | Notes 注释 |
|---|---|---|
| Travel Distance 行程距离 | 200 – 1500 m | Determines cable length and drum size 决定电缆长度和鼓尺寸 |
| Travel Speed 行进速度 | 20 – 45 m/min | Must coordinate with reeling speed 必须与卷绕速度协调 |
| Cable Length on Drum 鼓上电缆长度 | 300 – 2000 m | Includes operational reserve 包括运行储备 |
| Number of Reeling Cycles 卷绕循环次数 | 50,000 – 200,000 | Design life consideration 设计寿命考虑 |
| Environmental Rating 环境等级 | IP55 minimum for drum enclosure | Dust and water protection 防尘防水保护 |
10. Contact Information 联系方式
For technical consultation on Type 455 cable selection, installation guidance, or custom cable solutions for your stacker-reclaimer applications, please contact our engineering team.
如需有关Type 455电缆选择、安装指导或堆取料机应用定制电缆解决方案的技术咨询，请联系我们的工程团队。
Anhui Feichun Special Cable Co., Ltd.
安徽飞纯特种电缆有限公司
Technical Enquiries 技术咨询:
Email 邮箱: [email protected]
Sales Department 销售部:
Email 邮箱: [email protected]
Email 邮箱: [email protected]
WhatsApp: +86 138 5512 3218
